Introduction
JST SUR connectors have long been recognized as a dependable solution in the world of IDC (Insulation Displacement Connector) technology. The compact 0.8mm pitch design not only maximizes space on densely populated PCBs but also ensures secure connections and reliable signal integrity. Our custom cable assemblies are designed specifically for applications where performance and space are paramount.
At our manufacturing facility, we specialize in creating tailored cable solutions that integrate seamlessly with your system design. By utilizing state-of-the-art production techniques and rigorous quality control, we deliver cable assemblies that exceed industry standards for both performance and longevity.
Custom JST SUR 0.8mm XSR 0.6mm cable assemblies
High-Density, Compact Design
The JST SUR 0.8mm series is ideal for designs where space is at a premium. The 0.8mm pitch allows for a high density of connectors on a single board without sacrificing performance. This compact design is perfect for applications such as wearable devices, laptops, and embedded systems, where minimizing footprint is essential.
Superior Electrical Performance
Our custom IDC connector cable assemblies are engineered for low resistance and excellent signal integrity. This ensures minimal signal loss and high-speed data transmission, making them suitable for high-frequency applications. Whether you’re designing high-performance computing systems or critical communication devices, these assemblies offer the reliability you need.
Robust Construction and Reliability
Durability is a cornerstone of our design philosophy. Our JST SUR cable assemblies are manufactured using premium materials and are built to withstand harsh environmental conditions. The robust construction minimizes the risk of disconnection or failure, ensuring long-term operational reliability even in challenging applications.
Customization at Scale
We understand that every project has unique requirements. That’s why we offer a range of customization options for our JST SUR series. From cable length and insulation materials to specific termination methods, our engineering team works closely with clients to tailor each assembly to their exact specifications.
Our Comprehensive JST SUR Product Range
We proudly offer an extensive selection of JST SUR 0.8mm Pitch connector assemblies. Our inventory includes both standard and custom configurations designed to meet various application needs. Our JST SUR series part numbers cover two major families:
JST SUR 32S Series
Our JST SUR 32S series offers a range of part numbers to suit diverse applications. Examples include:
- 02SUR-32S, 03SUR-32S, 04SUR-32S, 05SUR-32S, 06SUR-32S, 07SUR-32S, 08SUR-32S, 09SUR-32S, 10SUR-32S, 11SUR-32S, 12SUR-32S, 13SUR-32S, 14SUR-32S, 15SUR-32S, 16SUR-32S, 17SUR-32S, 18SUR-32S, 19SUR-32S, 20SUR-32S, 21SUR-32S, 22SUR-32S.
These part numbers represent a wide selection of configurations in the 32S family, ensuring you have the right connector for your specific needs.
JST SUR 36L Series
For applications that require enhanced features, our JST SUR 36L series is an excellent choice. Our range includes:
- 02SUR-36L, 03SUR-36L, 04SUR-36L, 05SUR-36L, 06SUR-36L, 07SUR-36L, 08SUR-36L, 09SUR-36L, 10SUR-36L, 11SUR-36L, 12SUR-36L, 13SUR-36L, 14SUR-36L, 15SUR-36L, 16SUR-36L, 17SUR-36L, 18SUR-36L, 19SUR-36L, 20SUR-36L, 21SUR-36L, 22SUR-36L.
The 36L series is designed to provide additional mechanical strength and electrical performance for even more demanding applications.
Additional Custom Cable Assembly Options
Beyond our standard JST SUR part families, we also offer specialized cable assemblies for specific market segments. These include advanced models such as:
- SM02B-SURS-TF, SM02B-XSRS-ETD, SM03B-SURS-TF, SM04B-SURS-TF, SM04B-XSRS-ETD, SM05B-SURS-TF, SM06B-SURS-TF, SM06B-XSRS-ETD, SM07B-SURS-TF, SM08B-SURS-TF, SM09B-SURS-TF, SM10B-SURS-TF, SM10B-XSRS-ETD, SM11B-SURS-TF, SM12B-SURS-TF, SM13B-SURS-TF, SM14B-SURS-TF, SM15B-SURS-TF, SM16B-SURS-TF, SM16B-XSRS-ETD, SM17B-SURS-TF, SM18B-SURS-TF, SM19B-SURS-TF, SM20B-SURS-TF, SM20B-XSRS-ETD, SM22B-SURS-TF, SM22B-XSRS-ETD.
These models are ideal for applications requiring a combination of high-performance electrical properties and unique mechanical configurations.
Design and Engineering Excellence
Our engineering team leverages decades of experience in connector and cable assembly design to develop products that deliver unmatched performance. Every custom JST SUR cable assembly undergoes rigorous testing to ensure compliance with industry standards and to guarantee optimal performance in real-world applications.
Innovative Manufacturing Processes

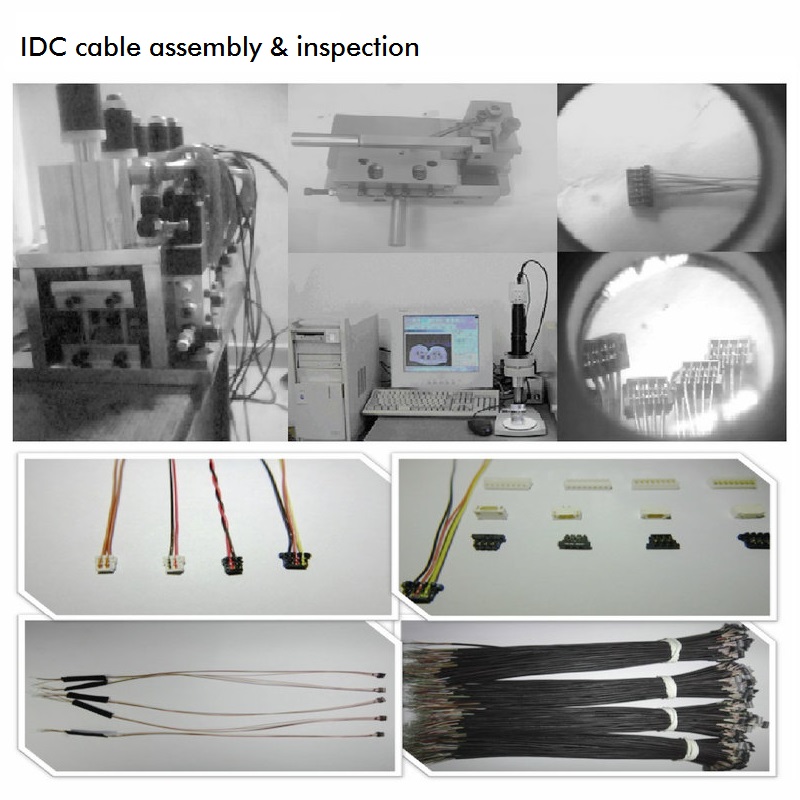

We use advanced automated assembly lines and precision tooling to manufacture our JST SUR IDC connector cable assemblies. This commitment to technological excellence ensures consistent quality and high-volume production capabilities without sacrificing precision or reliability.
Quality Assurance and Reliability
Quality is at the heart of everything we do. Our manufacturing process incorporates strict quality control measures at every stage—from material selection and design validation to final testing. The result is a product line that consistently delivers superior electrical performance, durability, and longevity.
Applications and Industries Served
Our custom JST SUR 0.8mm Pitch IDC connector cable assemblies are used across a variety of high-tech industries. Their compact size, high reliability, and design flexibility make them ideal for applications such as:
- Consumer Electronics: Laptops, tablets, smartphones, and wearable devices that require a high density of reliable connections.
- Medical Devices: Advanced diagnostic and monitoring equipment where precision and reliability are critical.
- Industrial Automation: Machinery and control systems that demand robust, long-lasting cable assemblies.
- Automotive Electronics: Modern vehicle systems where space is limited and performance is paramount.
- Aerospace and Defense: High-reliability applications that require components capable of withstanding extreme conditions.
JST XSR Series IDC Connector & Sockets 0.6mm pitch IDC Wire & Cable
This is the world’s smallest 0.6mm pitch ID connector for discrete wires.
This wire-to-board miniaturised connector has a mounting height of 1.45mm and depth of 3.0mm.Related Part number:
JST XSR 0.6mm pitch header connector:
SM02B-XSRS-ETD, SM04B-XSRS-ETD, SM06B-XSRS-ETD, SM10B-XSRS-ETD, SM16B-XSRS-ETD, SM20B-XSRS-ETD, SM22B-XSRS-ETD
JST XSR 0.6mm pitch socket connector:
02XSR-36S, 04XSR-36S, 06XSR-36S, 10XSR-36S, 16XSR-36S, 20XSR-36S, 22XSR-36S
| Product Profile | |
| Series | XSR connector |
| Category | Insulation Displacement Connectors (Wire-to-Board type) |
| Type | IDC style, IDC style, Disconnectable type |
| Pitch | 0.6 mm |
| Current rating | 0.2A |
| Voltage rating | 30V |
| PCB mounting direction | Side entry |
JST XSR 0.6mm pitch Cable Connectors
JST SUR Conector & IDC Socket 0.8mm pitch IDC Wire

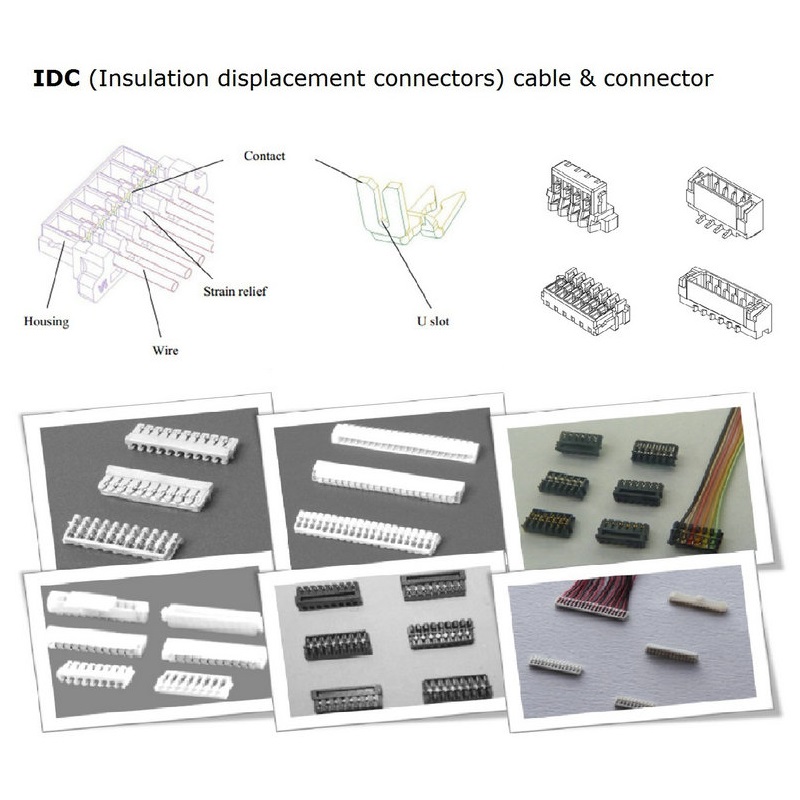

The world’s first 0.8mm pitch wire-to-board insulation displacement connector.
Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
JST Sur 0.80mm Pitch Connector finds its advantage in devices such as, Multi-function printer office machines, gaming electronics, Imaging and digital cameras, security systems, VCRs, PDAs, computer, notebook, speaker, headlight, engine, stereo, LCD, LED lamps, battery, lamp strip, fan, car, headlights, PCB, television.
JST SUR 0.8mm pitch header IDC connector:
BM02B-SURS-TF,BM03B-SURS-TF,BM04B-SURS-TF,BM05B-SURS-TF,BM06B-SURS-TF,BM07B-SURS-TF,BM08B-SURS-TF,BM09B-SURS-TF,BM10B-SURS-TF,BM11B-SURS-TF,BM12B-SURS-TF,BM13B-SURS-TF,BM14B-SURS-TF,BM15B-SURS-TF,BM16B-SURS-TF,BM17B-SURS-TF,BM18B-SURS-TF,BM19B-SURS-TF,BM20B-SURS-TF,BM22B-SURS-TF,SM02B-SURS-TF,SM03B-SURS-TF,SM04B-SURS-TF,SM05B-SURS-TF,SM06B-SURS-TF,SM07B-SURS-TF,SM08B-SURS-TF,SM09B-SURS-TF,SM10B-SURS-TF,SM11B-SURS-TF,SM12B-SURS-TF,SM13B-SURS-TF,SM14B-SURS-TF,SM15B-SURS-TF,SM16B-SURS-TF,SM17B-SURS-TF,SM18B-SURS-TF,SM19B-SURS-TF,SM20B-SURS-TF,SM22B-SURS-TF
Custom JST SUR IDC Wire & Cable Part Number 0.8mm pitch Sockets & Connectors
| JST SUR IDC Wire 0.8 MM PITCH | POSITIONS | AWG | UL Style Wire | Inside Length (inches) | Inside Length (mm) | Pin Out |
| IDC Wire-A02SUR02SUR32W51A | 2 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W51B | 2 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A03SUR03SUR32W51A | 3 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W51B | 3 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A04SUR04SUR32W51A | 4 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W51B | 4 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A05SUR05SUR32W51A | 5 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W51B | 5 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A06SUR06SUR32W51A | 6 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W51B | 6 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A08SUR08SUR32W51A | 8 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W51B | 8 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A10SUR10SUR32W51A | 10 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W51B | 10 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A12SUR12SUR32W51A | 12 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W51B | 12 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A14SUR14SUR32W51A | 14 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W51B | 14 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A15SUR15SUR32W51A | 15 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W51B | 15 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A16SUR16SUR32W51A | 16 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W51B | 16 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A17SUR17SUR32W51A | 17 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W51B | 17 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A20SUR20SUR32W51A | 20 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W51B | 20 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A22SUR22SUR32W51A | 22 | 32 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W51B | 22 | 32 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A02SUR02SUR32W152A | 2 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W152B | 2 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A03SUR03SUR32W152A | 3 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W152B | 3 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A04SUR04SUR32W152A | 4 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W152B | 4 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A05SUR05SUR32W152A | 5 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W152B | 5 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A06SUR06SUR32W152A | 6 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W152B | 6 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A08SUR08SUR32W152A | 8 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W152B | 8 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A10SUR10SUR32W152A | 10 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W152B | 10 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A12SUR12SUR32W152A | 12 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W152B | 12 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A14SUR14SUR32W152A | 14 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W152B | 14 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A15SUR15SUR32W152A | 15 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W152B | 15 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A16SUR16SUR32W152A | 16 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W152B | 16 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A17SUR17SUR32W152A | 17 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W152B | 17 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A20SUR20SUR32W152A | 20 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W152B | 20 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A22SUR22SUR32W152A | 22 | 32 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W152B | 22 | 32 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A02SUR02SUR32W305A | 2 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W305B | 2 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A03SUR03SUR32W305A | 3 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W305B | 3 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A04SUR04SUR32W305A | 4 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W305B | 4 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A05SUR05SUR32W305A | 5 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W305B | 5 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A06SUR06SUR32W305A | 6 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W305B | 6 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A08SUR08SUR32W305A | 8 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W305B | 8 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A10SUR10SUR32W305A | 10 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W305B | 10 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A12SUR12SUR32W305A | 12 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W305B | 12 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A14SUR14SUR32W305A | 14 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W305B | 14 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A15SUR15SUR32W305A | 15 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W305B | 15 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A16SUR16SUR32W305A | 16 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W305B | 16 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A17SUR17SUR32W305A | 17 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W305B | 17 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A20SUR20SUR32W305A | 20 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W305B | 20 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A22SUR22SUR32W305A | 22 | 32 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W305B | 22 | 32 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A02SUR02SUR32W102A | 2 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W102A | 3 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W102A | 4 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W102A | 5 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W102A | 6 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W102A | 8 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W102A | 10 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W102A | 12 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W102A | 14 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W102A | 15 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W102A | 16 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W102A | 17 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W102A | 20 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W102A | 22 | 32 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W102B | 2 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A03SUR03SUR32W102B | 3 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A04SUR04SUR32W102B | 4 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A05SUR05SUR32W102B | 5 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A06SUR06SUR32W102B | 6 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A08SUR08SUR32W102B | 8 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A10SUR10SUR32W102B | 10 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A12SUR12SUR32W102B | 12 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A14SUR14SUR32W102B | 14 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A15SUR15SUR32W102B | 15 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A16SUR16SUR32W102B | 16 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A17SUR17SUR32W102B | 17 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A20SUR20SUR32W102B | 20 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A22SUR22SUR32W102B | 22 | 32 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A02SUR02SUR32W203A | 2 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W203A | 3 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W203A | 4 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W203A | 5 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W203A | 6 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W203A | 8 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W203A | 10 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W203A | 12 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W203A | 14 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W203A | 15 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W203A | 16 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W203A | 17 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W203A | 20 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W203A | 22 | 32 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W203B | 2 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A03SUR03SUR32W203B | 3 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A04SUR04SUR32W203B | 4 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A05SUR05SUR32W203B | 5 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A06SUR06SUR32W203B | 6 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A08SUR08SUR32W203B | 8 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A10SUR10SUR32W203B | 10 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A12SUR12SUR32W203B | 12 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A14SUR14SUR32W203B | 14 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A15SUR15SUR32W203B | 15 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A16SUR16SUR32W203B | 16 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A17SUR17SUR32W203B | 17 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A20SUR20SUR32W203B | 20 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A22SUR22SUR32W203B | 22 | 32 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A02SUR02SUR32W254A | 2 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A03SUR03SUR32W254A | 3 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A04SUR04SUR32W254A | 4 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A05SUR05SUR32W254A | 5 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A06SUR06SUR32W254A | 6 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A08SUR08SUR32W254A | 8 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A10SUR10SUR32W254A | 10 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A12SUR12SUR32W254A | 12 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A14SUR14SUR32W254A | 14 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A15SUR15SUR32W254A | 15 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A16SUR16SUR32W254A | 16 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A17SUR17SUR32W254A | 17 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A20SUR20SUR32W254A | 20 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A22SUR22SUR32W254A | 22 | 32 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A02SUR02SUR32W254B | 2 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A03SUR03SUR32W254B | 3 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A04SUR04SUR32W254B | 4 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A05SUR05SUR32W254B | 5 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A06SUR06SUR32W254B | 6 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A08SUR08SUR32W254B | 8 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A10SUR10SUR32W254B | 10 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A12SUR12SUR32W254B | 12 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A14SUR14SUR32W254B | 14 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A15SUR15SUR32W254B | 15 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A16SUR16SUR32W254B | 16 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A17SUR17SUR32W254B | 17 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A20SUR20SUR32W254B | 20 | 32 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A22SUR22SUR32W254B | 22 | 32 | UL10064 | 10 | 254 | 1 to N |
JST XSR 0.6mm pitch IDC socket connector:
02SUR-32S,03SUR-32S,04SUR-32S,05SUR-32S,06SUR-32S,07SUR-32S,08SUR-32S,09SUR-32S,10SUR-32S,11SUR-32S,12SUR-32S,13SUR-32S,14SUR-32S,15SUR-32S,16SUR-32S,17SUR-32S,18SUR-32S,19SUR-32S,20SUR-32S,21SUR-32S,22SUR-32S,02SUR-36L,03SUR-36L,04SUR-36L,05SUR-36L,06SUR-36L,07SUR-36L,08SUR-36L,09SUR-36L,10SUR-36L,11SUR-36L,12SUR-36L,13SUR-36L,14SUR-36L,15SUR-36L,16SUR-36L,17SUR-36L,18SUR-36L,19SUR-36L,20SUR-36L,21SUR-36L,22SUR-36L
| Product Profile | |
| Series | SUR connector |
| Category | Insulation Displacement Connectors (Wire-to-Board type) |
| Type | Disconnectable type,IDC style,Compact type,Low-profile type |
| Pitch | 0.8 mm |
| Current rating | 0.5A (AWG#32), 0.2A (AWG#36) |
| Voltage rating | 30V |
| PCB mounting direction | Top entry, Side entry |
Custom JST SUR cable connectors
JST XSR 0.6 MM PITCH IDC Wire & Cable Assemblies:
| JST XSR IDC Wire 0.6 MM PITCH | POSITIONS | AWG | UL Style Wire | Inside Length (inches) | Inside Length (mm) | Pin Out |
| IDC Wire-A02XSR02XSR36R51A | 2 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R51A | 4 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R51A | 6 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R51A | 10 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R51B | 2 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A04XSR04XSR36R51B | 4 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A06XSR06XSR36R51B | 6 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A16XSR16XSR36R51B | 16 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A20XSR20XSR36R51B | 20 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A22XSR22XSR36R51B | 22 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A16XSR16XSR36R152B | 16 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A20XSR20XSR36R152B | 20 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A22XSR22XSR36R152B | 22 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A16XSR16XSR36R295B | 16 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A20XSR20XSR36R295B | 20 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A22XSR22XSR36R295B | 22 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A10XSR10XSR36R51B | 10 | 36 | UL10064 | 2 | 50.8 | 1 to N |
| IDC Wire-A02XSR02XSR36R152B | 2 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A04XSR04XSR36R152B | 4 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A10XSR10XSR36R152B | 10 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A02XSR02XSR36R295B | 2 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A04XSR04XSR36R295B | 4 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A06XSR06XSR36R295B | 6 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A10XSR10XSR36R295B | 10 | 36 | UL10064 | 12 | 304.8 | 1 to N |
| IDC Wire-A16XSR16XSR36R51A | 16 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R51A | 20 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R51A | 22 | 36 | UL10064 | 2 | 50.8 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R152A | 2 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R152A | 4 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R152A | 6 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R152A | 10 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R152B | 6 | 36 | UL10064 | 6 | 152.4 | 1 to N |
| IDC Wire-A16XSR16XSR36R152A | 16 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R152A | 20 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R152A | 22 | 36 | UL10064 | 6 | 152.4 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R295A | 2 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R295A | 4 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R295A | 6 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R295A | 10 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A16XSR16XSR36R295A | 16 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R295A | 20 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R295A | 22 | 36 | UL10064 | 12 | 304.8 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R102A | 2 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R102B | 2 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A04XSR04XSR36R102A | 4 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R102B | 4 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A06XSR06XSR36R102A | 6 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R102B | 6 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A10XSR10XSR36R102A | 10 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R102B | 10 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A16XSR16XSR36R102A | 16 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A16XSR16XSR36R102B | 16 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A20XSR20XSR36R102A | 20 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R102B | 20 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A22XSR22XSR36R102A | 22 | 36 | UL10064 | 4 | 101.6 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R102B | 22 | 36 | UL10064 | 4 | 101.6 | 1 to N |
| IDC Wire-A02XSR02XSR36R203A | 2 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R203B | 2 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A04XSR04XSR36R203A | 4 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R203B | 4 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A06XSR06XSR36R203A | 6 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R203B | 6 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A10XSR10XSR36R203A | 10 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R203B | 10 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A16XSR16XSR36R203A | 16 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A16XSR16XSR36R203B | 16 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A20XSR20XSR36R203A | 20 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R203B | 20 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A22XSR22XSR36R203A | 22 | 36 | UL10064 | 8 | 203.2 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R203B | 22 | 36 | UL10064 | 8 | 203.2 | 1 to N |
| IDC Wire-A02XSR02XSR36R254A | 2 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A02XSR02XSR36R254B | 2 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A04XSR04XSR36R254A | 4 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A04XSR04XSR36R254B | 4 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A06XSR06XSR36R254A | 6 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A06XSR06XSR36R254B | 6 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A10XSR10XSR36R254A | 10 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A10XSR10XSR36R254B | 10 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A16XSR16XSR36R254A | 16 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A16XSR16XSR36R254B | 16 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A20XSR20XSR36R254A | 20 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A20XSR20XSR36R254B | 20 | 36 | UL10064 | 10 | 254 | 1 to N |
| IDC Wire-A22XSR22XSR36R254A | 22 | 36 | UL10064 | 10 | 254 | 1 to 1 |
| IDC Wire-A22XSR22XSR36R254B | 22 | 36 | UL10064 | 10 | 254 | 1 to N |
Welcome to Custom & OEM JST XSR SUR IDC cable assemblies:
- E-mail: sales@micro-coaxial.com
- Tel: +86-158-8966-1771
- Wechat / WhatsApp: +86-158-8966-1771
- Skype: jacky882010
Custom JST XSR cable SUR cable assemblies
About IDC (insulation displacement connector)
An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.
wire-to-board insulation displacement connector
Custom JST XSR 0.6mm SUR 0.8mm connector cable assembly 0.6mm XSR cable 0.8mm picth SUR cable JST fine pitch discrete wire connector
SUR 0.8mm pitch IDC Cable Connectors
Disconnectable Insulation Displacement IDC Connectors 0.8mm Pitch
XSR 0.6mm Pitch Insulation Displacement Cable Connectors,
IDC Connectors 0.6mm Pitch
JST SUR Connectors 0.8mm Pitch SUR 0.8mm Pitch Cable Connector
JST XSR Cable Connectors 0.6mm Pitch XSR 0.6mm Pitch connector
JST SUR Series Connectors 0.8mm Pitch SUR 0.8mm Pitch Connectors. SUR 0.8mm connector is the world’s first 0.8 mm wire to board connector. This SUR connector is suitable for densely crowded electronic devices. delivers up to 0.5A per contact in its American Wire Gage (AWG) #32 and 0.2 A
Why Choose Our Custom JST SUR Cable Assemblies?
Choosing our custom cable assemblies means partnering with a leader in connector technology. We offer:
- Tailored Solutions: Every project is unique, and our customizable options ensure that you get exactly what you need.
- Comprehensive Product Range: With a broad selection of JST SUR part numbers—from the 32S and 36L series to our specialized SM series—we provide solutions for every application.
- Unmatched Quality and Performance: Rigorous testing and quality assurance ensure that our products deliver reliable performance, even under the most demanding conditions.
- Expert Support: Our experienced engineering team is available to help you select the right components and optimize your design for performance and reliability.
English
Afrikaans
Shqip
አማርኛ
العربية
Հայերեն
Azərbaycan dili
Euskara
Беларуская мова
বাংলা
Bosanski
Български
Català
Cebuano
Chichewa
简体中文
繁體中文
Corsu
Hrvatski
Čeština
Dansk
Nederlands
Esperanto
Eesti
Filipino
Suomi
Français
Frysk
Galego
ქართული
Deutsch
Ελληνικά
ગુજરાતી
Kreyol ayisyen
Harshen Hausa
Ōlelo Hawaiʻi
עִבְרִית
हिन्दी
Hmong
Magyar
Íslenska
Igbo
Bahasa Indonesia
Gaelige
Italiano
日本語
Basa Jawa
ಕನ್ನಡ
Қазақ тілі
ភាសាខ្មែរ
한국어
كوردی
Кыргызча
ພາສາລາວ
Latin
Latviešu valoda
Lietuvių kalba
Lëtzebuergesch
Македонски јазик
Malagasy
Bahasa Melayu
മലയാളം
Maltese
Te Reo Māori
मराठी
Монгол
ဗမာစာ
नेपाली
Norsk bokmål
پښتو
فارسی
Polski
Português
ਪੰਜਾਬੀ
Română
Русский
Samoan
Gàidhlig
Српски језик
Sesotho
Shona
سنڌي
සිංහල
Slovenčina
Slovenščina
Afsoomaali
Español
Basa Sunda
Kiswahili
Svenska
Тоҷикӣ
தமிழ்
తెలుగు
ไทย
Türkçe
Українська
اردو
O‘zbekcha
Tiếng Việt
Cymraeg
isiXhosa
יידיש
Yorùbá
Zulu
